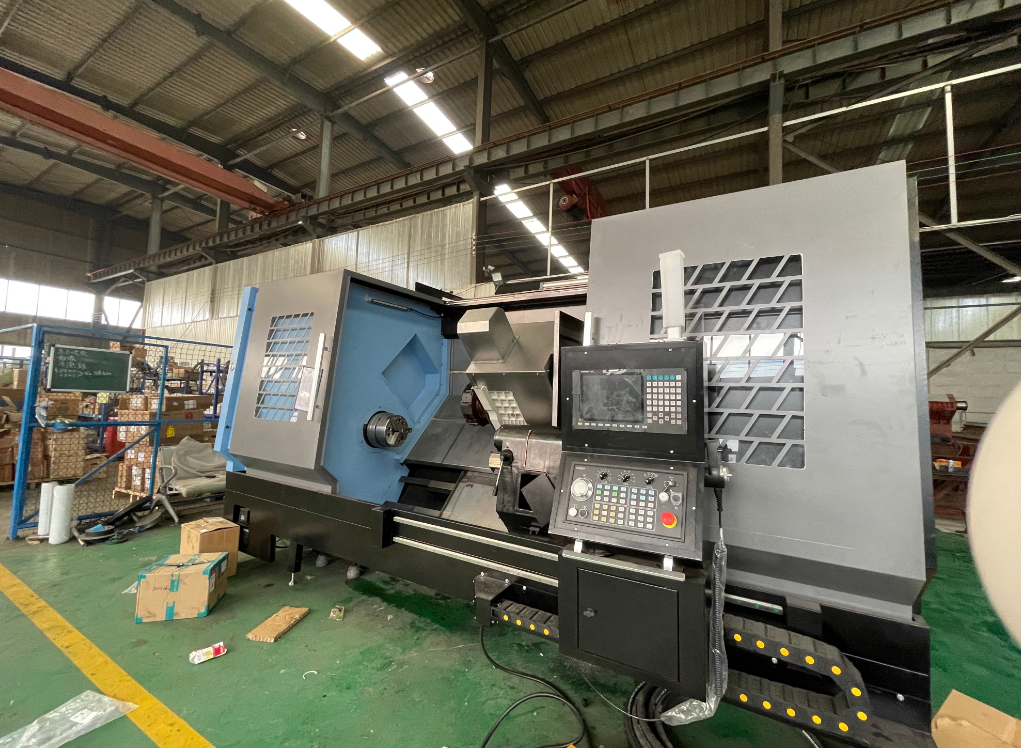

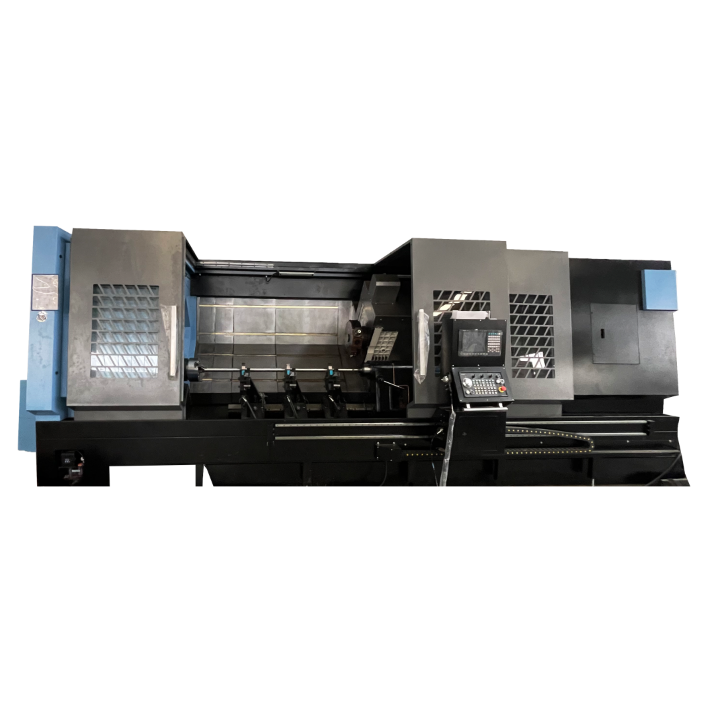

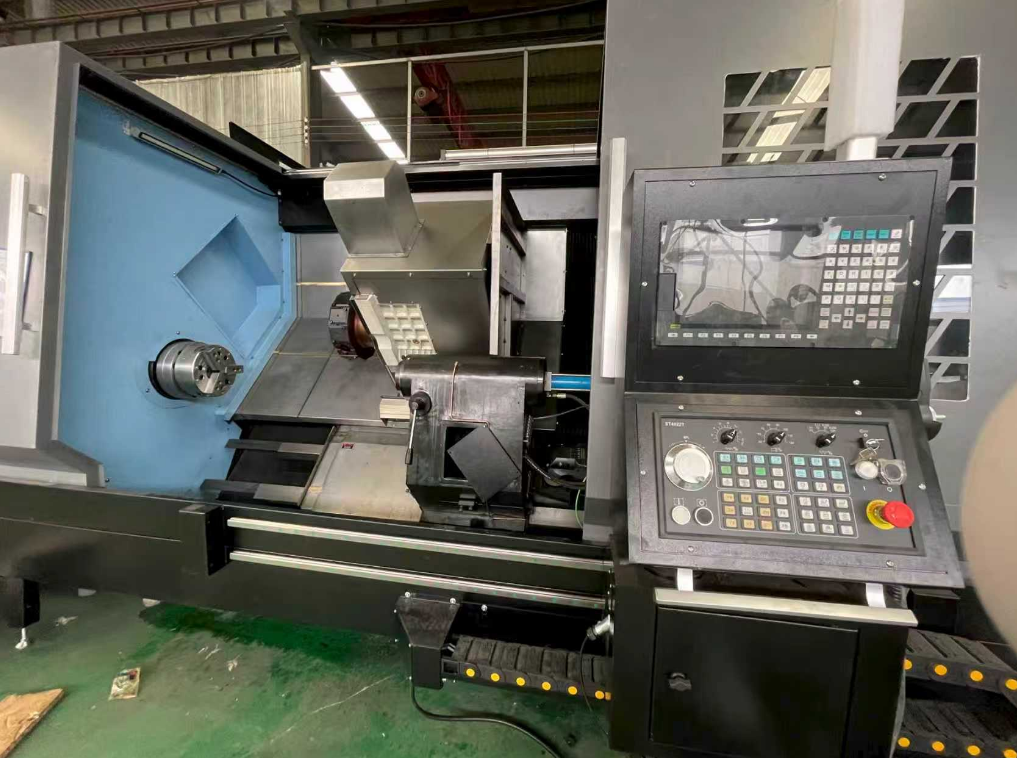

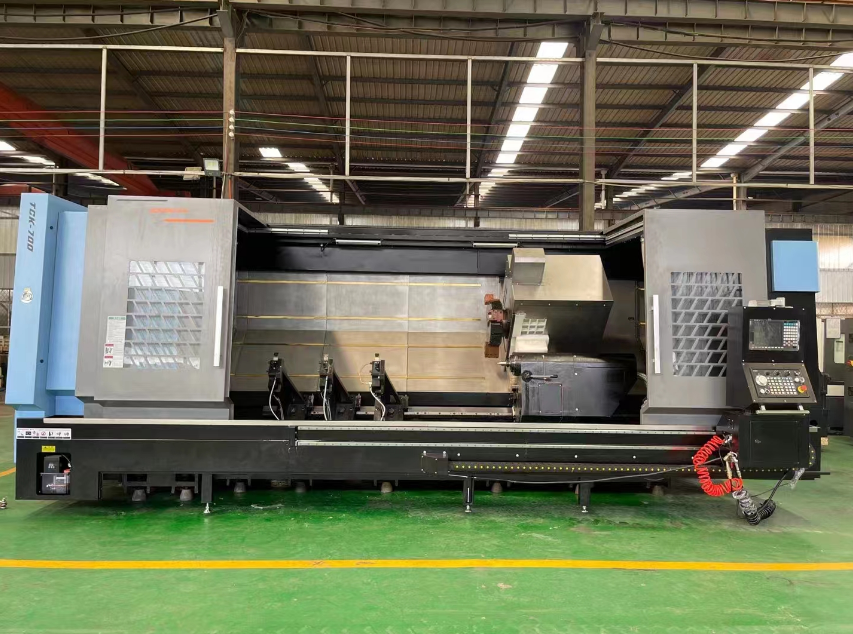

Professional TCK700DY CNC Turning Machine with Driven Tools
The TCK700DY is a high-performance slant-bed turning-milling machining center that integrates a wide range of processing functions, including turning, milling, drilling, and tapping. Equipped with Y-axis, C-axis, and a live tool turret, the machine enables multi-process machining of complex parts in a single clamping setup, thereby significantly enhancing production efficiency and machining precision. Its integral 45° slant-bed structure offers exceptional rigidity and stability, making it particularly well-suited for the precision machining of medium-to-large shafts, disc-shaped components, and complex, irregularly shaped parts.
It features a heavy-duty 45° slant-bed design with a high-strength cast iron bed; subjected to aging treatment, the bed offers enhanced stability, effectively dampening vibrations and boosting heavy-cutting capabilities.
Equipped with a ±75mm Y-axis travel range and C-axis linkage functionality, the machine can execute complex operations—such as machining eccentric holes, keyways, side milling, drilling, and tapping—thereby achieving true turn-mill composite machining.

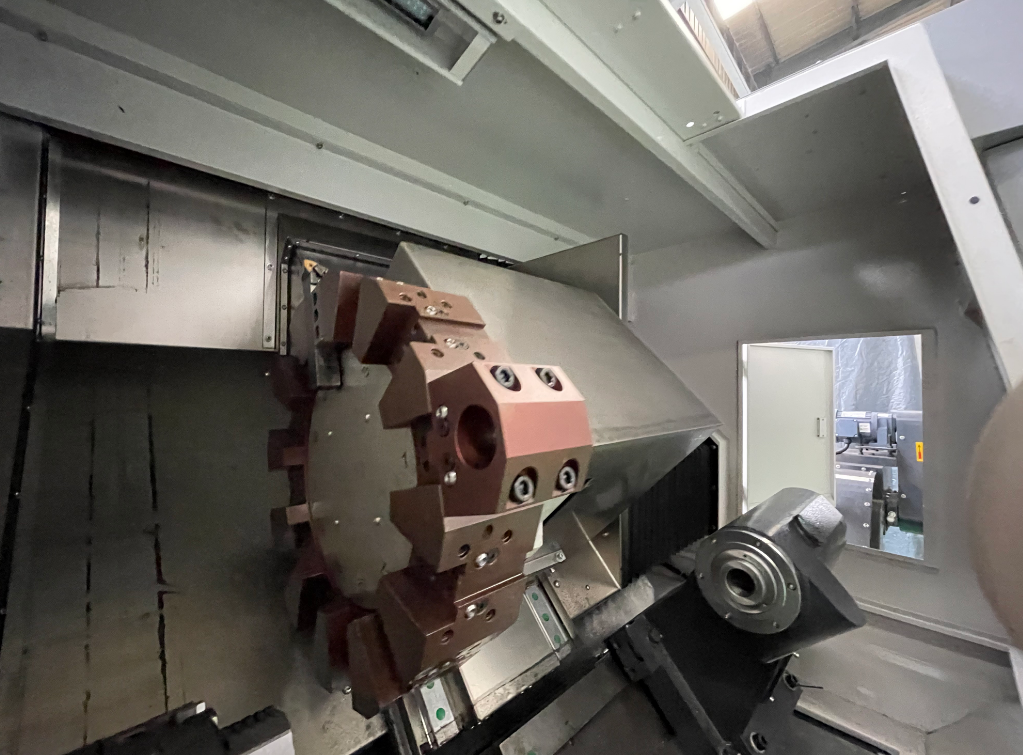

It is fitted with a 12-station BMT live tool turret, characterized by rapid tool-changing speeds and high rigidity, capable of meeting the demands for the continuous machining of a wide variety of complex parts.
Product Features:
**Multi-Process Machining in a Single Setup*
Turning, drilling, milling, and tapping are performed simultaneously, minimizing errors associated with secondary clamping and enhancing machining precision.
**Suitable for Machining Large Workpieces**
Features a maximum swing diameter of up to 780 mm, with machining lengths configurable in various specifications to meet specific customer requirements.
**Boosted Production Efficiency**
The integration of a live tool turret with Y-axis linkage significantly reduces process changeover times and optimizes equipment utilization.
**Reduced Labor Costs**
Minimizes workpiece handling and manual intervention, making it ideal for both batch production and automated manufacturing environments.
**Stable Machining Precision**
A high-rigidity structural design combined with a precision transmission system ensures long-term machining stability and consistency.
Product Application Industry
Automotive Manufacturing
Machining of automotive drive shafts, wheel hubs, flanges, and steering system components.
Construction Machinery
Machining of hydraulic cylinders, valve bodies, bushings, and heavy machinery components.
Oil & Energy
Machining of pipe fittings, flanges, pump and valve components, and large-scale rotary parts.
Aerospace
Machining of high-precision shaft components, aluminum alloy structural parts, and complex, irregularly shaped parts.
General Machinery Manufacturing
Machining of motor shafts, reducer components, and automation equipment parts.
Video
Product Parameter
| Item | Unit | TCK700DY |
| The maximum upper rotation diameter of the bed surface | mm | Φ780 |
| The maximum processing diameter on the tool post | mm | Φ500 |
| Maximum processing length | mm | 1000/1500/2000/3000 |
| Spindle maximum speed | rpm | 3000 |
| Spindle hole diameter | mm | 132 |
| bar stock diameter | mm | 115 |
| X-axis maximum travel | mm | 350+20 |
| Z-axis maximum travel | mm | 1050/1650/2100/3100 |
| Length X width X height | mm | 7500X2300X2550 |
| weight | kg | 11500/12300 |
