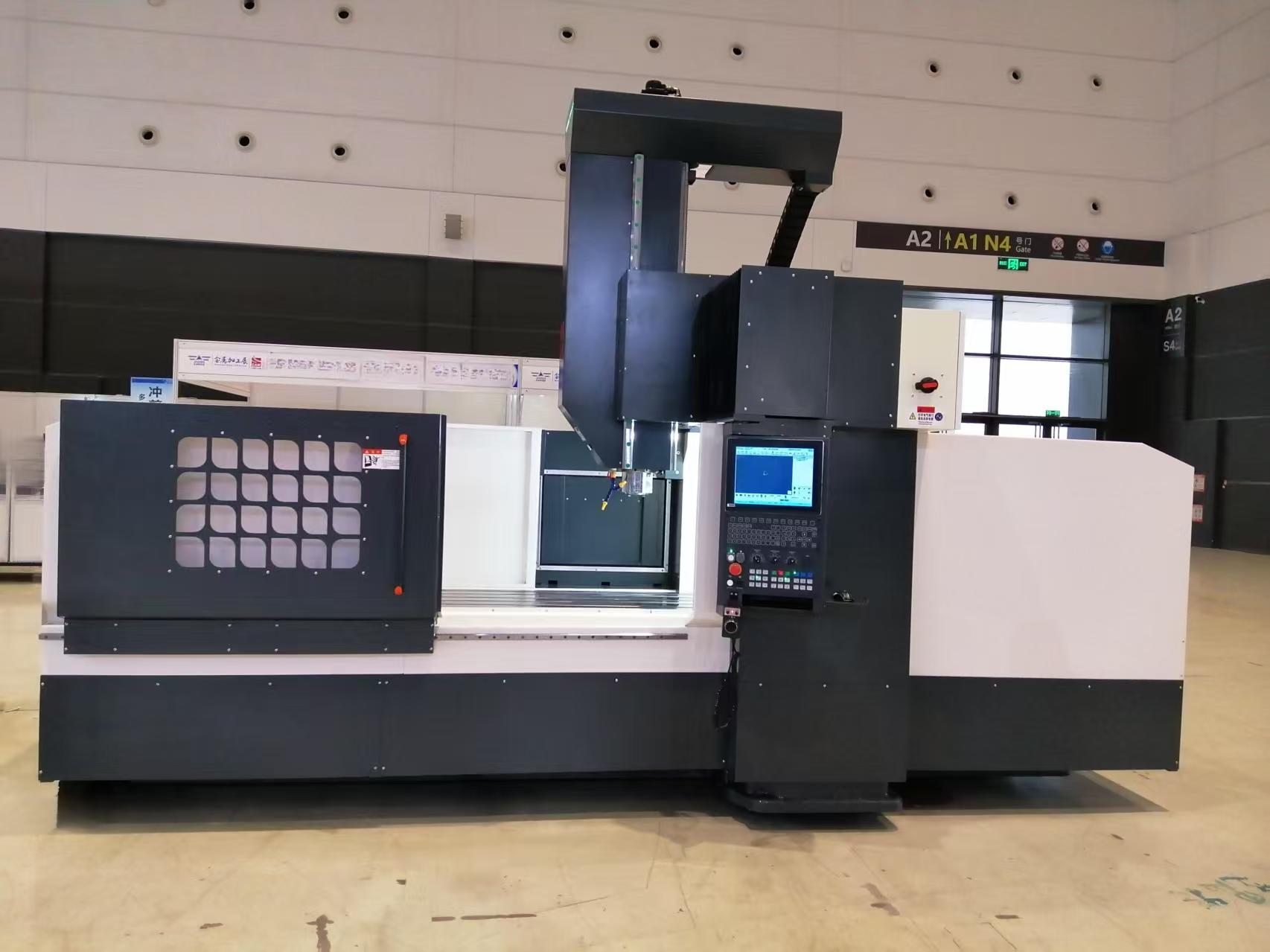

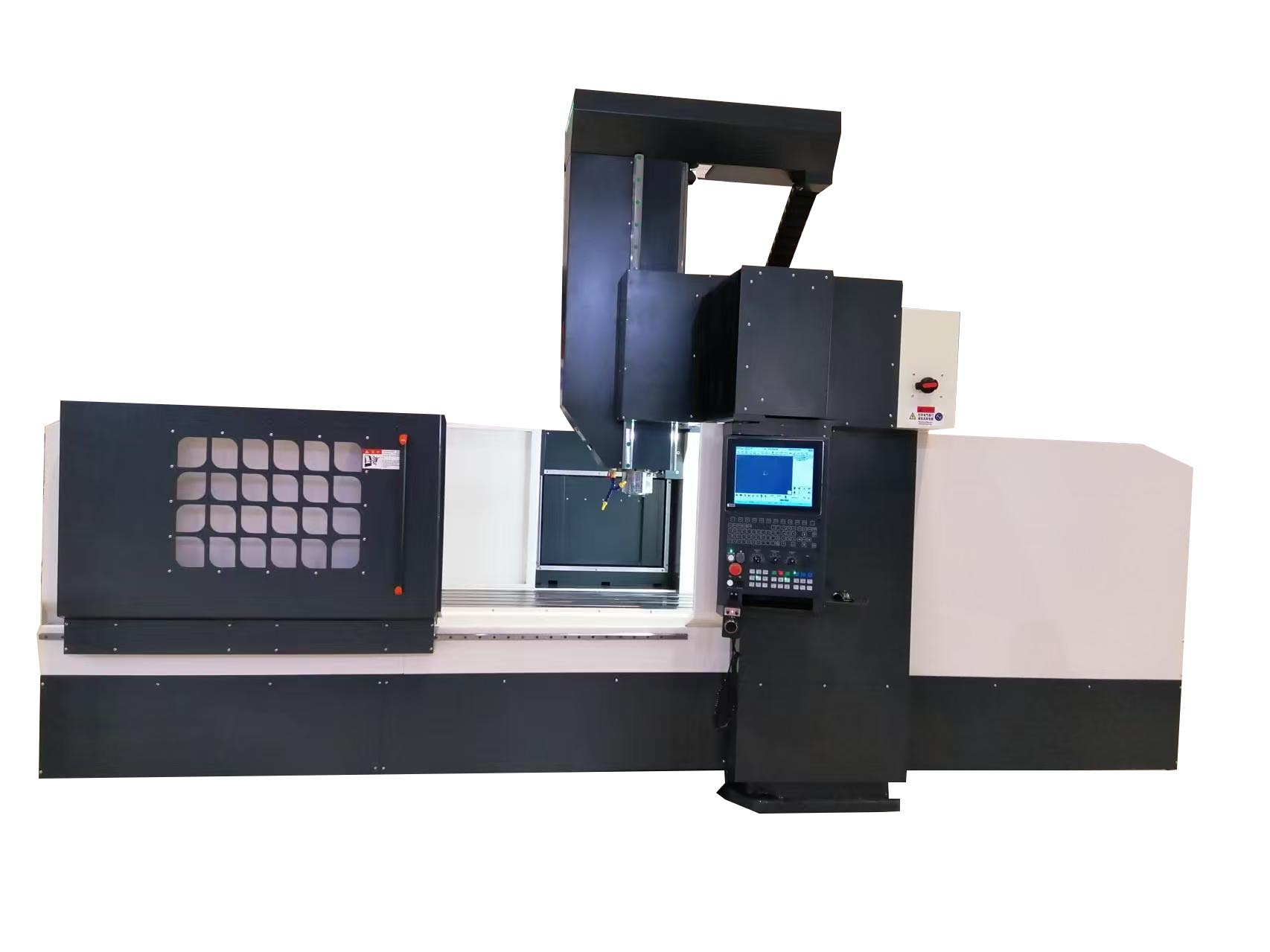

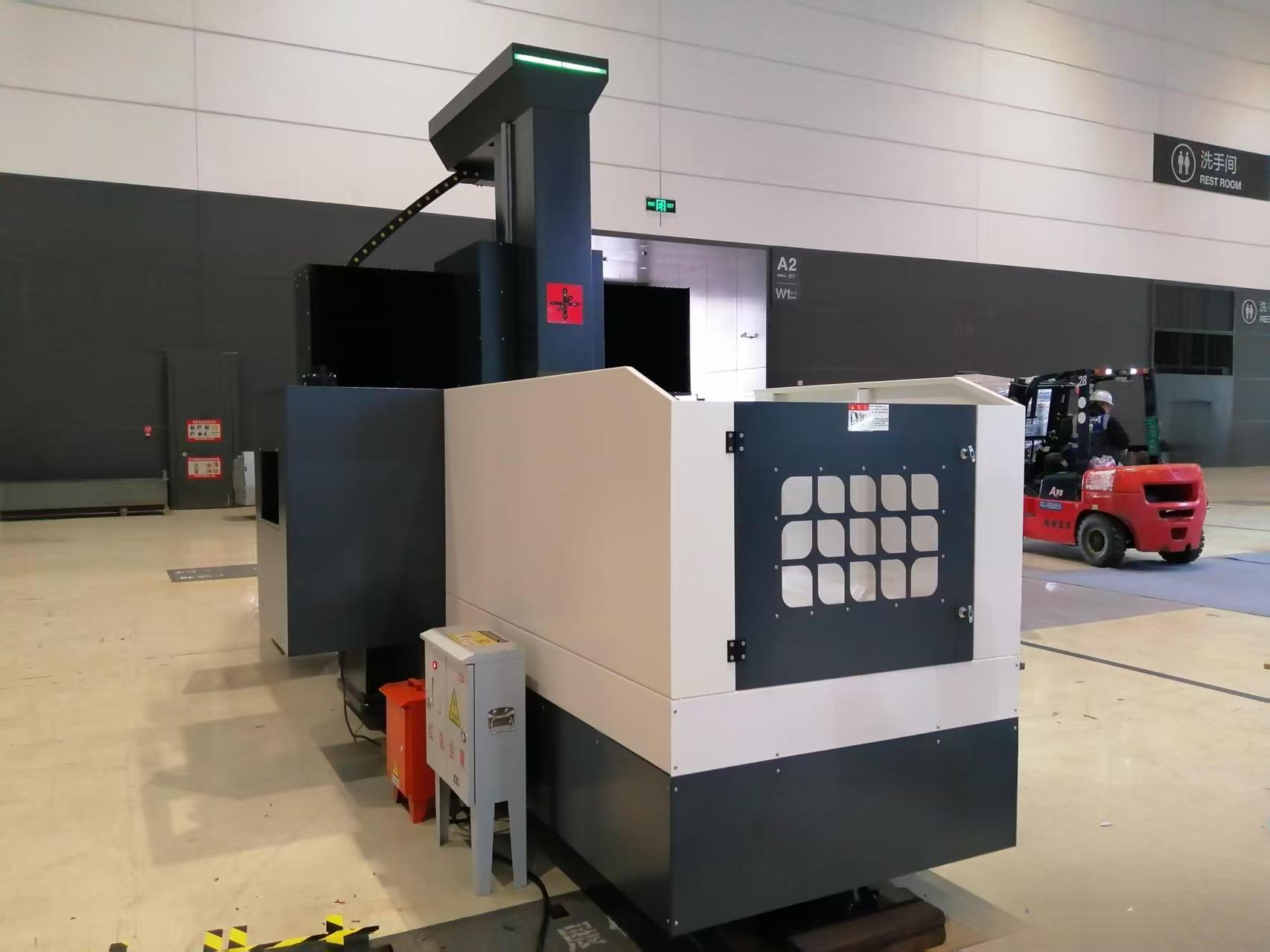

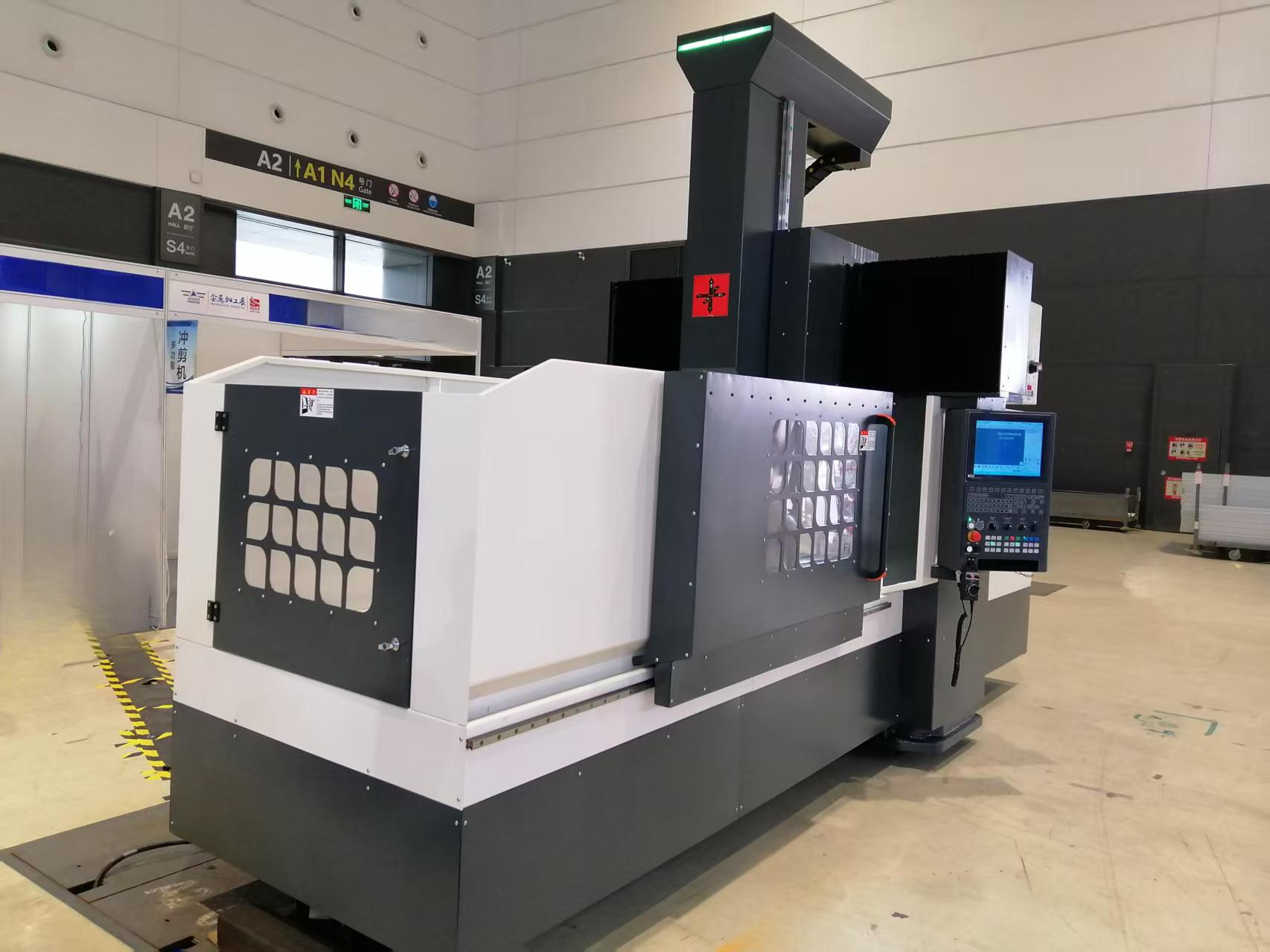

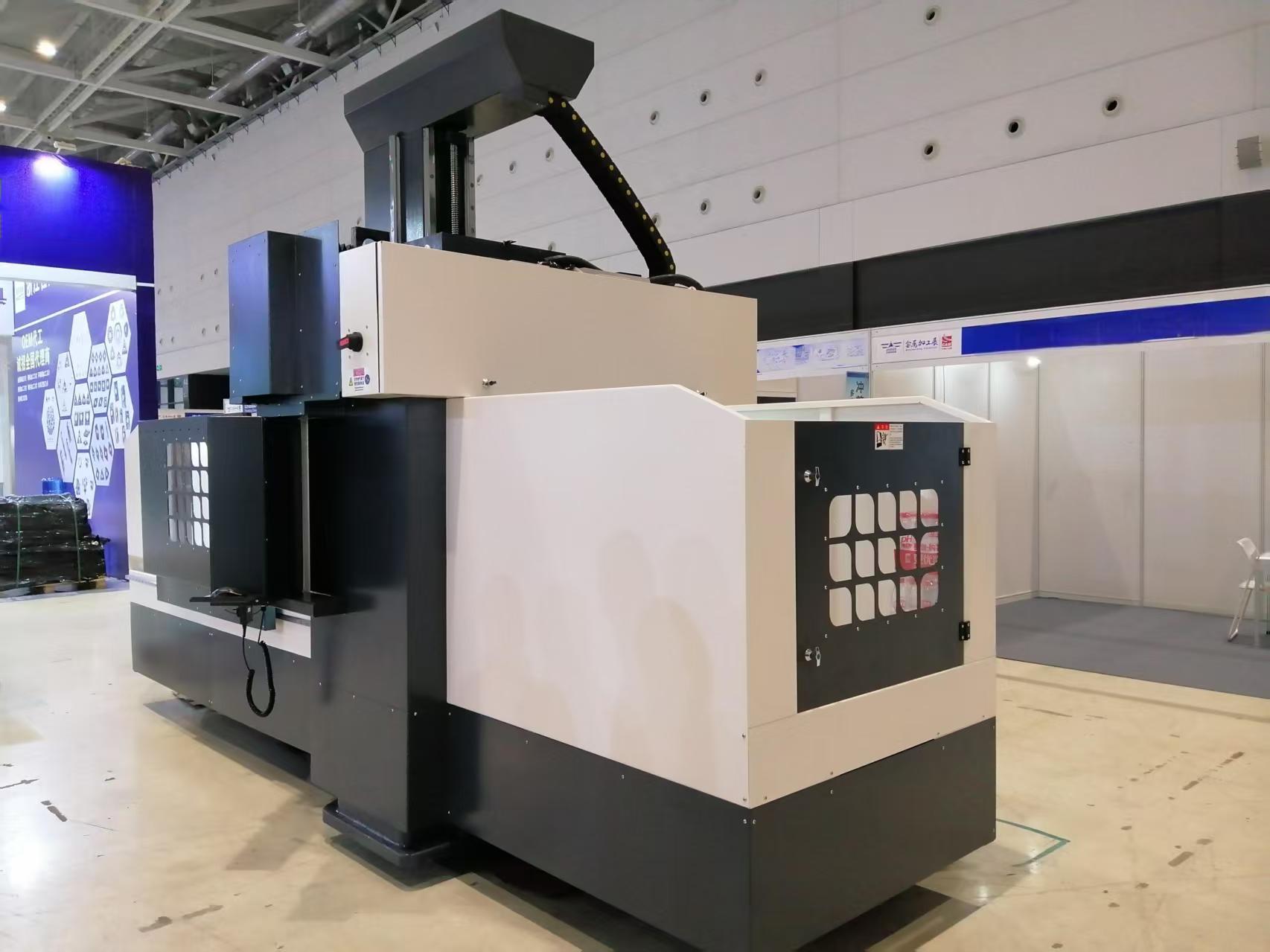

GMC1613 Gantry Machining Center
The GMC1613 Gantry Machining Center is a heavy-duty CNC gantry milling machine characterized by its high rigidity and exceptional stability. It is specifically engineered for the processing of large-scale workpieces, high-precision machining operations, and continuous heavy-duty cutting applications. Featuring a gantry frame structure, the machine boasts superior vibration resistance and load-bearing capacity, making it widely applicable across diverse sectors such as mold manufacturing, general mechanical processing, automotive components, aerospace, and heavy industry.
Features of Gantry type CNC milling machine
The GMC1613 Gantry Machining Center not only features high efficiency, high precision, and exceptional stability, but also meets the one-stop processing requirements for large, complex workpieces. For manufacturing enterprises striving for high-quality, high-efficiency production, the GMC1613 serves as the ideal choice for enhancing both production capacity and machining quality.
High-rigidity structure, suitable for heavy-duty cutting operations
Large machining envelope, suitable for large-scale workpieces
Stable precision with minimal error during long-term operation
High degree of automation, enhancing production efficiency
Durable equipment with low maintenance costs
Customizable configurations available to meet specific client requirements
Product application industry
Mold Manufacturing Industry
Suitable for the machining of complex parts, including automotive molds, injection molds, die-casting molds, and large-scale hardware molds.
Automotive Components Industry
Capable of machining engine parts, structural components, chassis parts, and large-scale automotive molds.
Aerospace Industry
Suitable for the high-precision machining of aluminum alloys, steel components, and complex aerospace structural parts.
Construction Machinery Industry
Widely used for machining large-scale mechanical structural parts, heavy equipment components, and industrial machinery.
Energy and Heavy Industry
Suitable for machining large-scale metal parts used in wind power equipment, petroleum machinery, mining machinery, and similar sectors.
Video
Product Parameter
| Item | Unit | ALGMC1613 |
| Working desk size | mm | 2200*1300 |
| Workbench bearing | kg | 3000 |
| T-slot width | mm | 7*18*165 |
| X-axis travel | mm | 2000 |
| Y-axis travel | mm | 1600 |
| Z axis travel | mm | 700 |
| Cutting feed speed range | m/min | 7 |
| Spindle end face to table distance | mm | 120-820 |
| Gantry is too wide | mm | 1350 |
| Machine Dimensions | mm | 5300*3400*2800 |
| Machine weight | T | 12.5 |
Select Configuration
Optional CNC Systems: GSK, KND, FANUC, Siemens
