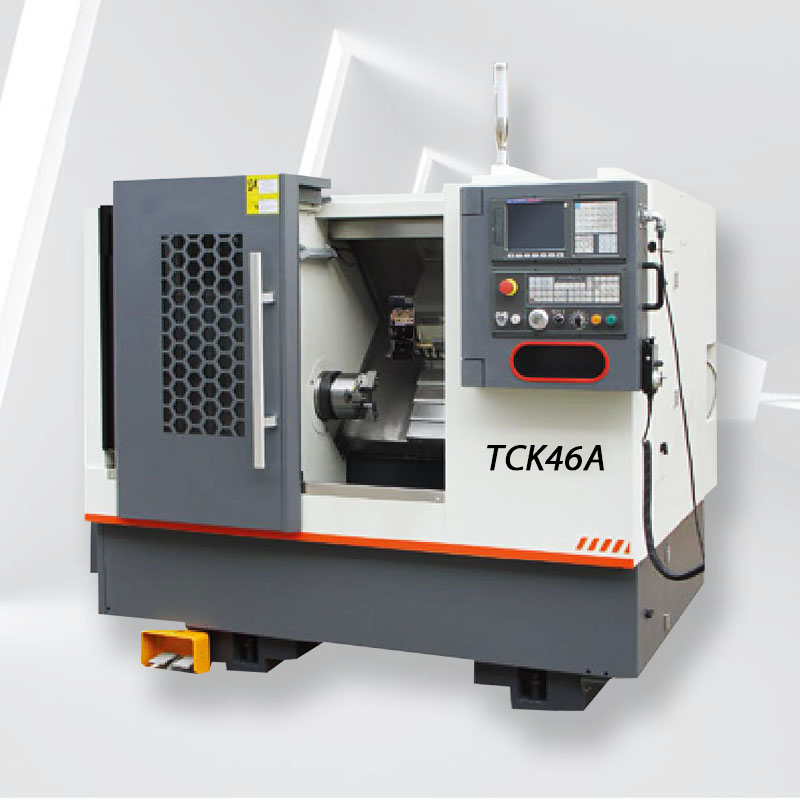

TCK46A High Rigidity Slant Bed Structure
The TCK46 features an integrated 45° slant bed design with finite element optimization, significantly improving the machine tool's overall rigidity and vibration resistance, making it suitable for high-speed, high-precision cutting. Equipped with high-precision ball screws and precision linear guides, it boasts high repeatability and strong long-term operational stability, meeting the needs of batch precision parts processing.
The TCK46A features a hydraulic or servo turret, enabling rapid tool changes and continuous multi-stage machining, significantly improving production efficiency and reducing labor costs.
The slant bed structure, combined with a high-flow-rate cooling system, allows chips to slide off naturally, ensuring smooth chip removal and reducing the risk of chip entanglement, making it suitable for long-term continuous machining.
Optional accessories include an automatic feeder, robotic arm, and automatic unloading device, enabling automated production units suitable for unmanned or minimally staffed workshops.
Product Features
45° integral cast iron slant bed, high rigidity design
High-precision spindle unit, supporting high-speed machining
Linear guide structure, fast motion response and high precision
Servo hydraulic turret, fast tool change speed and accurate positioning
Ball screw pre-tension structure, minimal thermal deformation
Fully enclosed protective design, safe and environmentally friendly
Automatic centralized lubrication system, extending service life
User-friendly interface, convenient maintenance
Product application industry
The TCK46 slant bed CNC lathe is suitable for high-precision machining of small and medium-sized shaft, disc, and sleeve parts, and is widely used in:
Automotive parts processing
Motorcycle parts manufacturing
Hardware and machinery parts
Hydraulic and pneumatic components
Electronic communication parts
Medical device parts
Aerospace parts
General machinery manufacturing
Video
Product Parameter
| Item | Unit | TCK46A |
| Max. swing dia. over bed | mm | Φ460 |
| Max. swing dia. over slide | mm | Φ260 |
| Max. processing length | mm | 350 |
| Spindle speed | rpm | 3500 |
| Spindle hole diameter | mm | 56 |
| Weight | KG | 3000 |
| Machine size | mm | 2500×1700×1890 |
